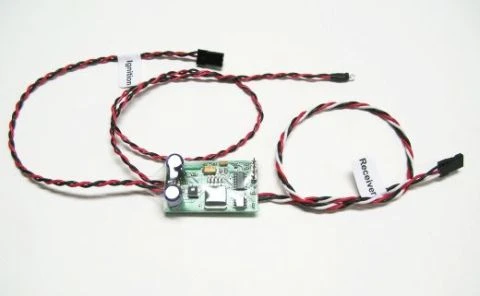

Tech Aero IBEC

Tech Aero IBEC

Features a GREEN or RED LED

Download Data Sheet

Download Instruction Manual

This amazing BEC eliminates the need for a separate ignition battery and mechanical on/off switch!

• Compatible with the power requirements of single and multi-cylinder model CDI ignition modules via jumper selectable 5V, 5.3V, 6.1V and 6.6V voltage outputs.
• Enhanced flexibility and safety via transmitter control of CDI ignition power from a receiver auxiliary channel.
• Features an exclusive 4 stage filtering that removes interference from CDI ignition noise in the wiring path to the receiver, permitting use with 2.4 GHz Spread Spectrum and 72 MHz FM radio receivers.
• • Filter stages 1 & 2:  An advanced 2nd order common mode LC power lead filter.
• • Filter stage 3: Triple power filter capacitors form a low pass filter and enhance peak impulse current delivery to the CDI module.
• • Filter stage 4: An optical isolator circuit prevents any stray noise from feeding back into sensitive receiver electronics via the signal lead.
• A high precision, very low dropout power regulator design further assures power receiver bus isolation with superior performance during peak current demand.
• One IBEC model fits all: compatible with any battery technology commonly used for radio control use, with a usable input voltage range from 4.8V to 10V.
• Bright 5mm LED CDI power on/off indicator with mounting bezel.
• High reliability Surface Mount components reduce weight to only 0.6 oz and size to 1” x 1 ¾”.
• Heavy duty 22 gauge twisted wire power extensions.
