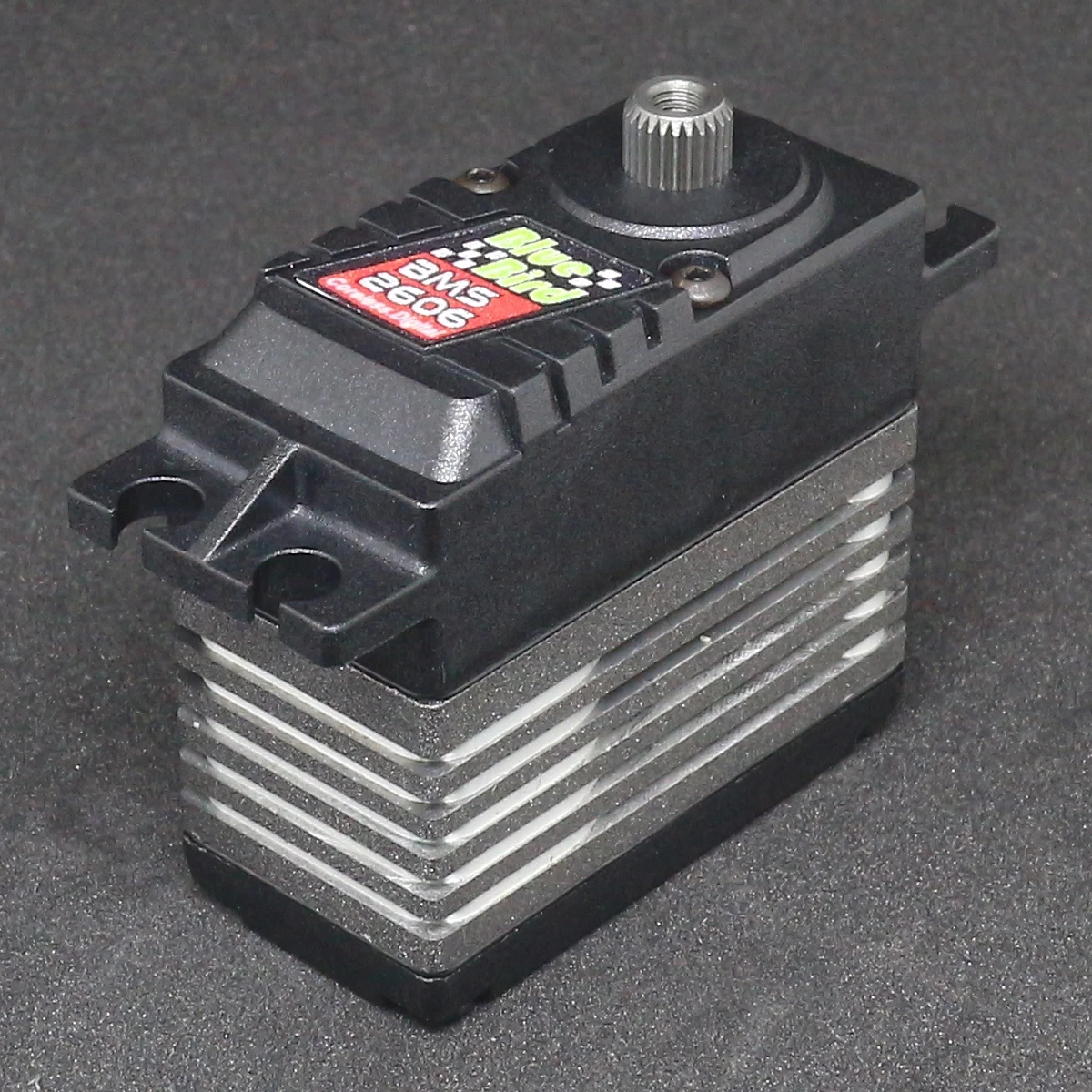

Name: New BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 More Torque W/ Soft Start Protection!!)
SKU: BBR-BMS-2606
Availability: InStock

Sale!

New BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 More Torque W/ Soft Start Protection!!)

New BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 More Torque W/ Soft Start Protection!!) - Image 2

New BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 More Torque W/ Soft Start Protection!!) - Image 3

New BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 More Torque W/ Soft Start Protection!!) - Image 4

Original price was: $65.99.Current price is: $46.19.

SKU: BBR-BMS-2606 Categories: Accessories, Servos, Radios, Receivers & Servo Parts

Safe Transactions, Always
Risk-Free Shopping with Returns
High quality products, hassle-free returns.
Experience Quality, Shop with Us

Description
Reviews (0)

BMS-2606, HV-DIGITAL, HIGH TORQUE, HIGH SPEED, Premium CORELESS, Steel GEARS (Improved BLS-2109 with more Torque andSoft-Start Protection!!)

APPLICATION / SUITABLE

Perfect for 3D Airplane, Heli, Jets and 1/8, 1/10th Buggy, Truggy, Crawle (EP / Gas Engine)

SPECIFICATIONS

Torque At 6.0V	22.1 kg-cm / 306.9 oz-in
Torque At 7.4V	28.4 kg-cm / 394.5 oz-in
Torque At 8.4V	32.2 kg-cm / 447.3 oz-in
Speed At 6.0V	0.08 sec / 60°
Speed At 7.4V	0.06 sec / 60°
Speed At 8.4V	0.05 sec / 60°

POWER SUPPLY

Operating Voltage Range

6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe )

STANDARD FULL ALUMINUM SERVO

Control System	Digital Controller / 12-Bits ( 4096 Steps )
Dead Band Width	0.001ms ( Default：1us)

Protection Mechanism:

Soft Start Protection	Soft start to neutral position.
Locked Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.
