Carbon Fiber Landing Gear (30cc-120cc Sizes)

Strong Carbon Fiber Replacement Landing Gear 30cc-120cc. Available in the below Styles (check your measurements with below pictures)

See the different styles below and select your gear based on your measurements. Style A and B are angled and C is curved.

PLEASE NOTE: THE GEAR HAVE NOT BEEN DRILLED SO YOU CAN MATCH IT TO YOUR PLANE.

Also see our 20-120cc Carbon Fber Landing Gear Extra 260 Series and Carbon Fiber Landing Gear YAK/SBach Series and Carbon Fiber LandingGear Extra 300 Series.

Dimensions (match the below information to the inset photo)

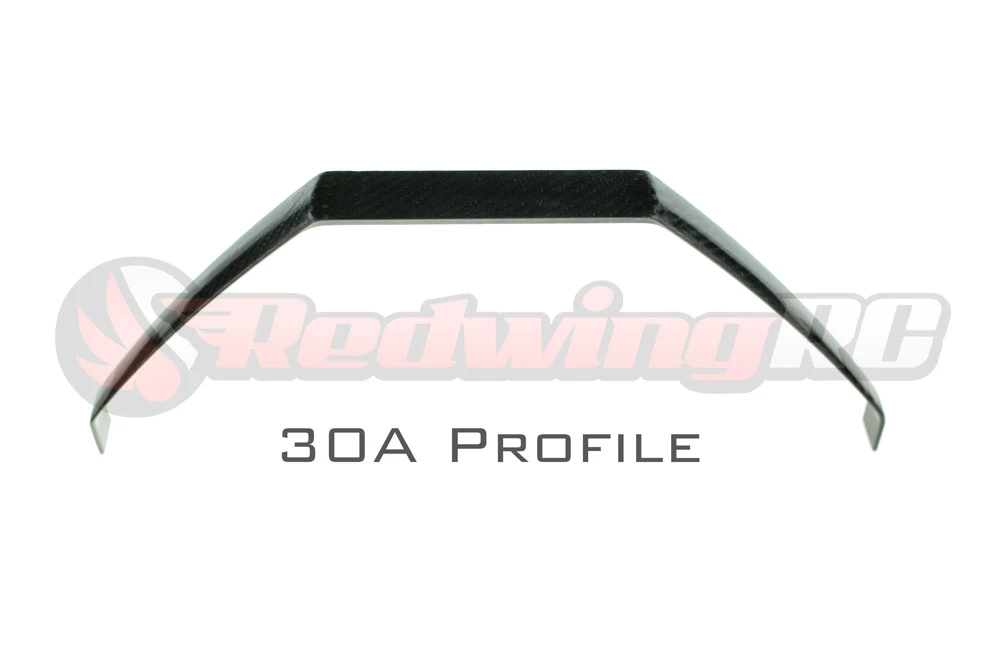

• 30cc A STYLE (3.6 oz)
  • A=7.5″
  • B=16″
  • C=5.5″
  • D=1.187″ taper to 1″
  • E=1.5″

• 30cc B STYLE (3.8 oz)
  • A=6.5″
  • B=16.75″
  • C=6.25″
  • D=1.375″ taper to 1″
  • E=1″

• 30cc C STYLE (3.4 oz)
  • A=6.5″
  • B=15.5″
  • C=5.5″
  • D=1.125″ taper to .75
  • E=1″

• 50cc A STYLE (8.2 oz)
  • A=8.75″
  • B=18.5″
  • C=6.5″
  • D=1.5″ taper to 1″
  • E=1.25″

• 50cc B STYLE (6 oz)
  • A=9.25″
  • B=18.75″
  • C=8″
  • D=1.5″ taper to 1.125″
  • E=1.5″

• 50cc C STYLE (6 oz)
  • A=7.75″
  • B=18.5″
  • C=6.25″
  • D=1.5″ taper to 1″
  • E=1.0″
• 100cc-120cc A Style (CF gear for 37-40% Sbach 342, Extra 330, Edge 540)
  • A=9.5″
  • B=26″
  • C=9″
  • D=2″ taper to  1.25″
  • E=1.75″
