BMS-A921+ HV MINI, DIGITAL, CORELESS (New Faster and more Torque w/ Soft Start Protection)

APPLICATIONĀ / SUITABLE
Perfect for: Heli 500 Class CCPM cyclic and rudder servo use, EP Aircraft & 1/12th EP Car

Ā

SPECIFICATIONS

Torque At 6.0V 10.8 kg-cm / 150.0 oz-in
Torque At 7.4V 13.3 kg-cm / 184.7 oz-inĀ
Torque At 8.4V 15.1 kg-cm / 209.7 oz-inĀ
Speed At 6.0V 0.07 sec / 60Ā°
Speed At 7.40V 0.06 sec / 60Ā°
Speed At 8.4V 0.05 sec /Ā 60Ā°

Ā

POWER SUPPLY
Operating Voltage Range Ā 4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2SĀ  LiFe / LiPo Compatible)

Ā

MINIĀ SERVO
Control System Digital ControllerĀ Ā / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width 0.001ms ( Defaultļ¼š1us)
Ā
Protection Mechanism:
Soft Start Protection Soft start to neutral position.
Locked ProtectionĀ  Stall in 5 sec, output torque goes down.Ā
Temperature Protection Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.
Ā
MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor High Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Ā

PHYSICAL SPECIFICATIONS

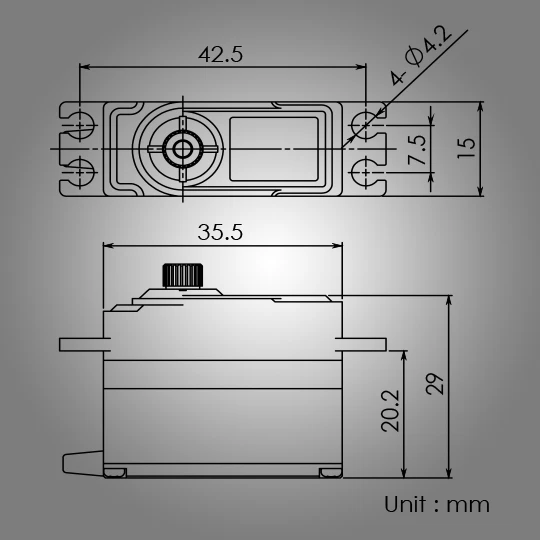

Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 35.5 Ā± 1 grams / 1.25 oz
