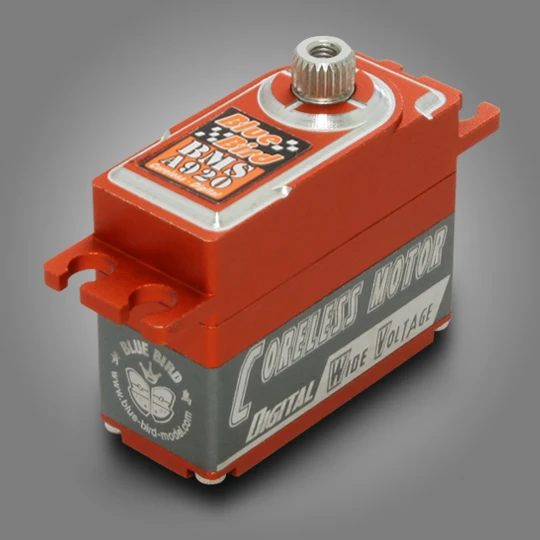

BMS-A920+ HV MINI, DIGITAL, CORELESS (New Faster and more Torque w/ Soft Start Protection)

APPLICATION / SUITABLE
Perfect for: Heli 500 Class CCPM cyclic and rudder servo use, EP Aircraft & 1/12th EP Car

SPECIFICATIONS

Torque At 6.0V 14.6 kg-cm / 202.8 oz-in
Torque At 7.4V 16.5 kg-cm / 229.2 oz-in
Torque At 8.4V 18.5 kg-cm / 256.9 oz-in
Speed At 6.0V 0.11 sec / 60°
Speed At 7.40V 0.09 sec / 60°
Speed At 8.4V 0.08 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4~6 Cell Ni-MH or 2S  LiFe / LiPo Compatible)



MINI SERVO
Control System Digital Controller  / AD 12-Bits Resolution ( 4096 Steps )
Dead Band Width 0.001ms ( Default：1us)
Protection Mechanism:
Soft Start Protection Soft start to neutral position.
Locked Protection  Stall in 5 sec, output torque goes down.
Temperature Protection Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.
MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear All Metal Gears
Motor High Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS

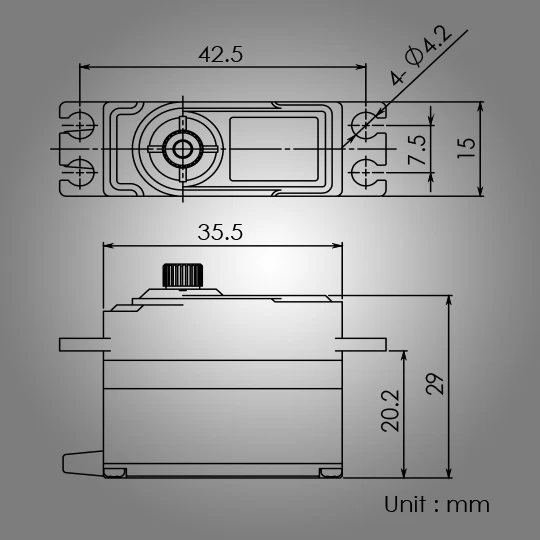

Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 35.5 ± 1 grams / 1.25 oz
