BMS-860DMAXplusHS Champion Digital Servo (MG) Coreless 25.2kg / 350oz/ .15sec @ 6.0V

Sale!
BMS-860DMAXplusHS Champion Digital Servo (MG) Coreless 25.2kg / 350oz/ .15sec @ 6.0V
BMS-860DMAXplusHS Champion Digital Servo (MG) Coreless 25.2kg / 350oz/ .15sec @ 6.0V - Image 2
BMS-860DMAXplusHS Champion Digital Servo (MG) Coreless 25.2kg / 350oz/ .15sec @ 6.0V - Image 3

Original price was: $25.00.Current price is: $17.50.

Buy Now
SKU: BBR-BMS-860DMAX Categories: ,
  • Safe Transactions, Always
  • Risk-Free Shopping with Returns
  • High quality products, hassle-free returns.
  • Experience Quality, Shop with Us

BMS-860DMAXplusHS Champion Digital Servo (MG) Coreless

APPLICATION / SUITABLE
Airplane, Car, Heli (EP / Gas Engine) 1/6, 1/8, 1/10 Buggy / Truggy, Crawler, Monster



SPECIFICATIONS
Torque At 4.8V 20.8 kg-cm / 289 oz-in
Torque At 6.0V 25.2 kg-cm / 350 oz-in
Speed At 4.8V 0.18 sec / 60°
Speed At 6.0V 0.15 sec / 60°




POWER SUPPLY
Operating Voltage Range  4.8V ~ 6.0V ( 2 Cell LiPo / 6 cell Ni-MH Compatible)



LARGE LOW VOLTAGE SERVO

Ball Bearing Dual
Gear Metal Gears
Motor Coreless
Horn / Gear Spline 25 Teeth ( Same as F-Type )

MECHANICAL SPECIFICATIONS



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 37 mm / 1.59 x 0.79 x 1.46 in
Weight (gram) 63.0 ± 1 grams / 2.22 oz

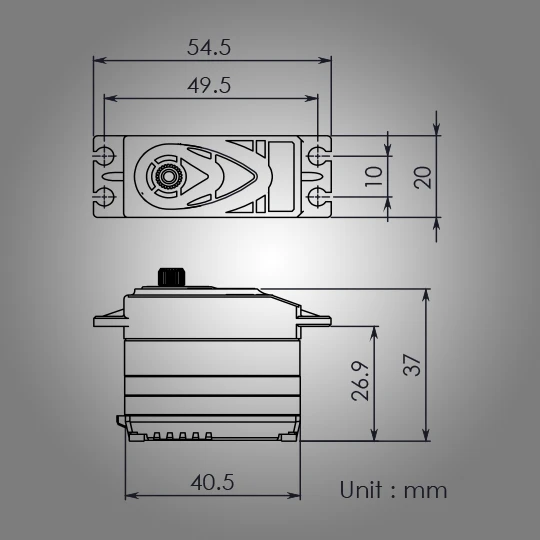

Product Picture / Dimension Sketch
