BMS-35A, HV-DIGITAL, HIGH SPEED, CORELESS, TITANIUM GEARS 35.5kg/493oz 0.14 @7.4V

Sale!

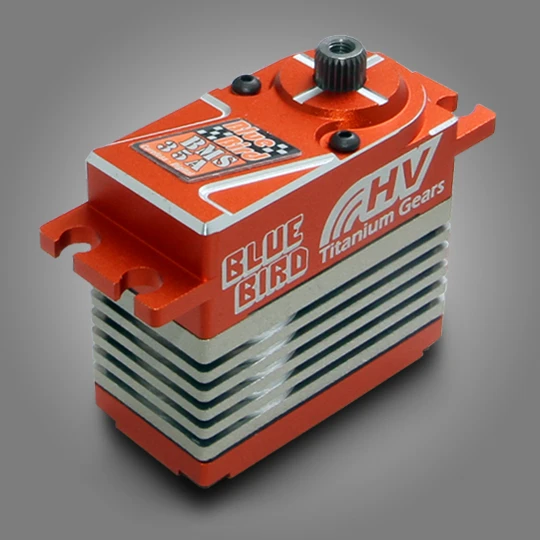

BMS-35A, HV-DIGITAL, HIGH SPEED, CORELESS, TITANIUM GEARS 35.5kg/493oz 0.14 @7.4V

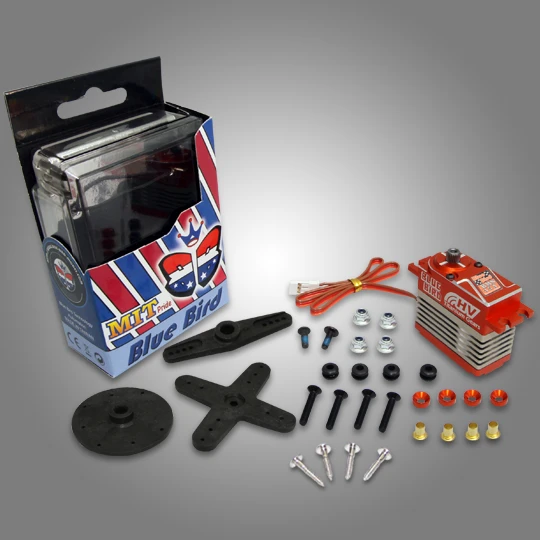

BMS-35A, HV-DIGITAL, HIGH SPEED, CORELESS, TITANIUM GEARS 35.5kg/493oz 0.14 @7.4V - Image 2
BMS-35A, HV-DIGITAL, HIGH SPEED, CORELESS, TITANIUM GEARS 35.5kg/493oz 0.14 @7.4V - Image 3

Original price was: $69.99.Current price is: $48.99.

SKU: BBR-BMS-35A Categories: ,
  • Safe Transactions, Always
  • Risk-Free Shopping with Returns
  • High quality products, hassle-free returns.
  • Experience Quality, Shop with Us

BMS35A, High Voltage, Brushless, High Speed, Digital, Titanium Gears

APPLICATION / SUITABLE
1/6, 1/8th Buggy, Truggy, Crawler, Monster & Airplane, Heli (EP / Gas Engine)



SPECIFICATIONS
Torque At 6.0V 29.0 kg-cm / 403.0 oz-in
Torque At 7.4V 35.5 kg-cm / 493.0 oz-in

Speed At 6.0V 0.17 sec / 60°
Speed At 7.4V 0.14 sec / 60°




POWER SUPPLY
Operating Voltage Range  4.8V ~ 8.5V ( 2 Cell LiPo / 6 cell Ni-MH Compatible)



STANDARD FULL ALUMINUM SERVO
Control System Digital Controller
Dead Band Width 0.001ms ( Default：1us)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS

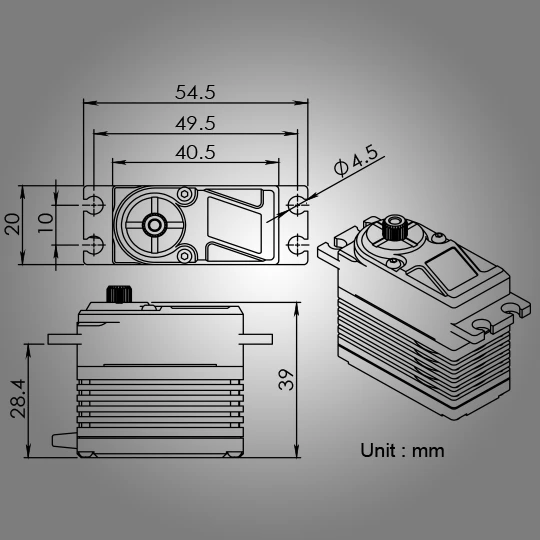

Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 74 ± 1 grams / 2.61 oz
