Name: BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V)
SKU: BBR-BLS-3006
Availability: InStock

Sale!

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V)

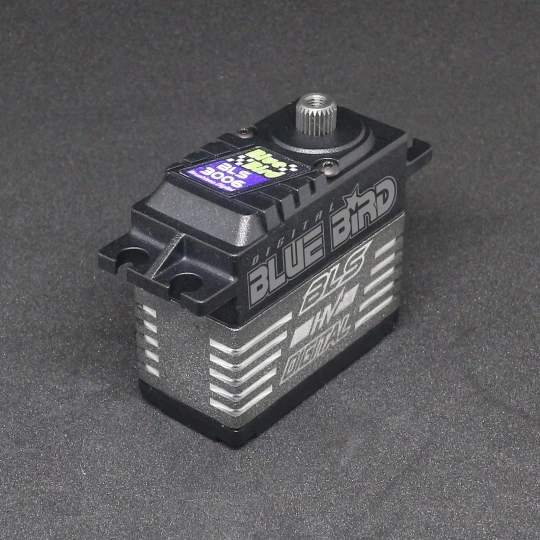

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 2

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 3

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V) - Image 4

Original price was: $79.99.Current price is: $55.99.

SKU: BBR-BLS-3006 Categories: Accessories, Servos, Radios, Receivers & Servo Parts

Safe Transactions, Always
Risk-Free Shopping with Returns
High quality products, hassle-free returns.
Experience Quality, Shop with Us

Description
Reviews (0)

BLS-3006, HV-DIGITAL, HIGH TORQUE, SUPER FAST SPEED, BRUSHLESS (35.7kg/495.9oz 0.05sec @8.4V)

APPLICATION / SUITABLE

Priority for 3D Airplane 26% 70-80″, Large Jet & 1/8th Buggy, Truggy, Crawler, Monster & Helicopter. (EP / Gas / Nitro)

Specifications

Torque At 6.0V	25.2 kg-cm / 350.0 oz-in
Torque At 7.4V	30.8 kg-cm / 427.8 oz-in
Torque At 8.4V	35.7 kg-cm / 495.9 oz-in
Speed At 6.0V	0.08 sec / 60°
Speed At 7.4V	0.06 sec / 60°
Speed At 8.4V	0.05 sec / 60°

Protection Mechanism

Soft Start Protection	Soft start to a neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature Protection	Overheat 85 degrees C (185 degrees F), drive the protection mode and down 75 degrees C (167 degrees F) return to normal mode.
Lose Control Protection	When losing the transmitter signal, that servo will be back to the neutral position immediately and lock.

Power Supply

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

Control Specification

Control System	Digital Controller / AD 12-Bits Resolution ( 4096 Steps ) Frequency：Up to 333Hz / Neutral：1500us or 1520us
Dead Band Width	0.001ms ( Default：1us)
