BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS

Sale!
BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS
BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS - Image 2
BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS - Image 3
BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS - Image 4

Original price was: $59.99.Current price is: $41.99.

SKU: BBR-BLS-1306 Categories: ,
  • Safe Transactions, Always
  • Risk-Free Shopping with Returns
  • High quality products, hassle-free returns.
  • Experience Quality, Shop with Us

BLS-1306, HV-DIGITAL, HIGH TORQUE, ULTRA HIGH SPEED, BRUSHLESS, TITANIUM GEARS

APPLICATION / SUITABLE
3D Gas Throttle, 1/10th Buggy, Truggy, Crawler & 3D Airplane, Helicopter (EP / Gas Engine)



SPECIFICATIONS
Torque At 6.0V 16.9 kg-cm / 235.0 oz-in
Torque At 7.4V 21.5 kg-cm / 397.0 oz-in
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°





POWER SUPPLY
Operating Voltage Range  6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe )



STANDARD FULL ALUMINUM SERVO
Control System Digital Controller
Dead Band Width 0.001ms ( Default：1us)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Premium Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 66 ± 1 grams / 2.33 oz

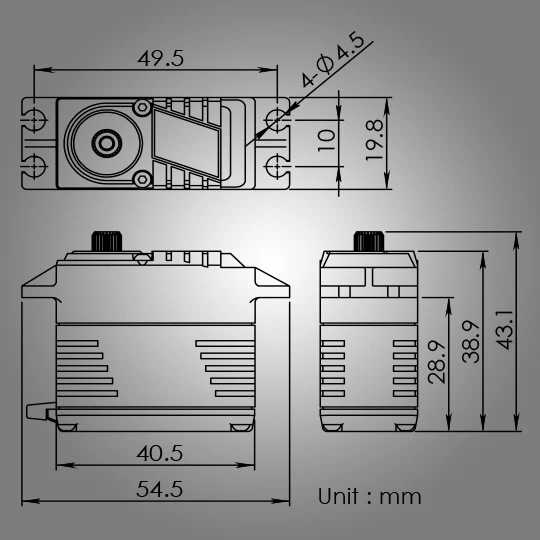

Product Picture / Dimension Sketch
