BG-0828SW (SAIL WINCH), DIGITAL, BRUSHLESS

APPLICATION / SUITABLE
Sail Winch for Larger Boat, Yacht.



SPECIFICATIONS
Torque At 4.8V 17.2 kg-cm / 238.9 oz-in
Torque At 6.0V 22.8 kg-cm / 316.7 oz-in
Torque At 7.4V 28.5 kg-cm / 395.8 oz-in
Speed At 4.8V 0.13 sec / 60°
Speed At 6.0V 0.10 sec / 60°
Speed At 7.4V 0.08 sec / 60°



POWER SUPPLY
Operating Voltage Range  4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe)
Operating Temperature Range  -20°C ~ +60°C ( -4°F ~ +140°F )



Control System Digital Controller

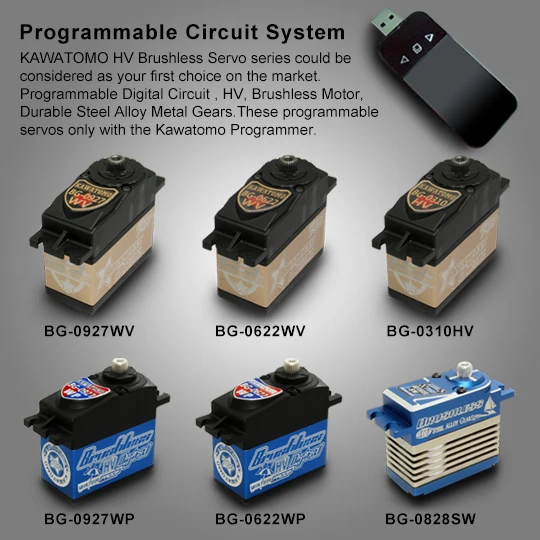

Programmable Yes, programmable circuit system (Adjustable Range: 3T~6T)
Rotating Direction Clockwise / When Pulse Traveling 1500~2100u second
Operating Travel Total Maximum around 2160° (6 Turns / Rotations)



MECHANICAL SPECIFICATIONS
Ball Bearing Dual
Gear Durable Steel Alloy Metal Gears
Motor Premium Brushless Motor (Made in Taiwan)
Horn / Gear Spline 25 Teeth ( Same as F-Type )



PHYSICAL SPECIFICATIONS
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 77 ± 1 grams / 2.71 oz

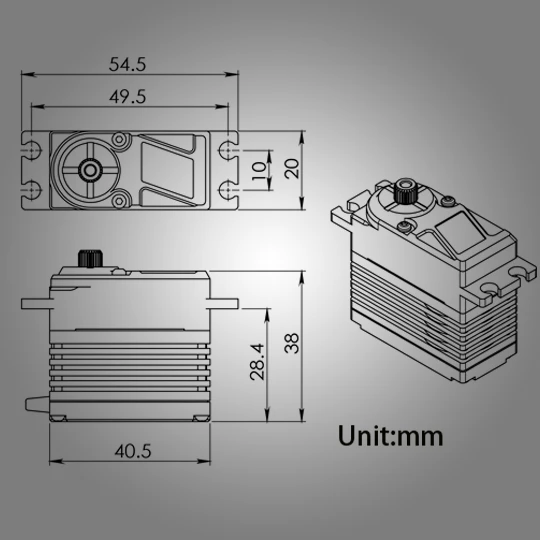

Product Picture / Dimension Sketch
